Tuesday, August 2, 2011

I built a bed!

Here we go!  I have completed the project, and even remembered to take step-by-step photos!  I built a queen-sized bed, and have shown you how to do it, too!


I start my cut on a carefully marked line on each side of the 4x4 before cutting through the center.

"Why, yes, I do own weights.  I even use them!"

After much sawing, and a blister or two, I have all the 4x4's notched for support of the frame.

Sniff!  She follows in my footsteps.

The raw materials-- the 2x10's and 2x4's cut by a power saw operator at Lowes.  Fast and accurate!

I set up the frame to get started.

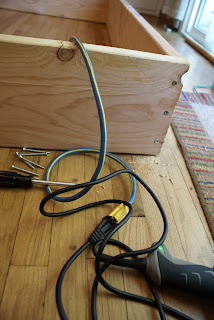

The frame is secured by 3: 2 1/2 inch wood screws.

Carefully, I balanced the frame on the 4x4 posts.

Balancing precariously on the 4x4's; holes were pre-drilled.

5" bolts hold the 4x4 to the frame.  Had a slight miscalculation on that hole location.   Oops.

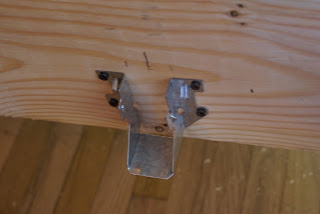

Joist hangers support the 2x4s.

The 2x4 slides in nicely, and can be removed for easy moving.


The 2x4's offer cross support.  Slotted angles offer extra support on head and foot ends.
 Since I am using the 2x4s upright, instead of lying flat, they are stronger and do not need a center support.

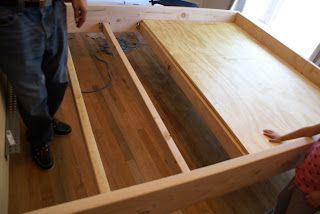

Time for the 3/4" under-layment.  Hubby helps with the heavy lifting :)
Viola!
My hubby was so excited he got me a gift. <3

Adding finish...

Finished product, curing.  I haven't put the mattress on yet, as the instructions said "3 days until normal use."  Sigh.

Storage space!  Beautiful storage!

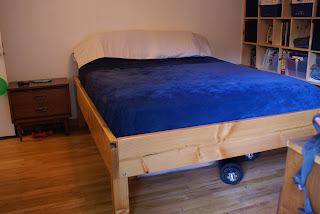

Mattress added. :)


Hope this was helpful or interesting to you!


6 comments:

  1. its gorgeous Cheril! Congratulations.

    ReplyDelete
  2. Wow, I'm impressed. Nice Job!

    ReplyDelete
  3. Fandabidozi! C'est magnifique!

    ReplyDelete

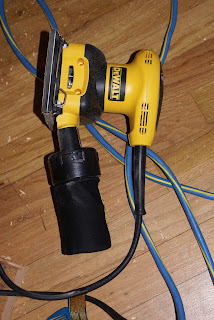

  4. It looks awesome!! Love the sander!
